Description

KYB18C series use quality sensing element, stainless steel bodyprocessing solution, high reliable back-end amplified processing circuit, the medium pressure is changed into a standard electrical signal output. Mature and exquisite production process to ensure the stability and quality of the product

Applications

Natural Gas Compressors
Gas Dispensers

Fuel GasSub- stations
Fuel Gas Drilling Platforms

Features

◆EMCcertified

◆Stainless steel integral structure, high reliability
◆NoO-rings, no corrosion, no leakage
◆wide temperature compensation range, stable and reliable signal output
◆mature production technology, good consistency
◆intrinsically safeExiaIICT6 and flameproof ExdIIBT5 available
◆customizedavailable

Application Description

KYB18C series is a mature solution widely used in fuel gas compressor, gas dispenser sections. Their cost-effective andlong service life, have been recognized by the customers of domain-specific products.

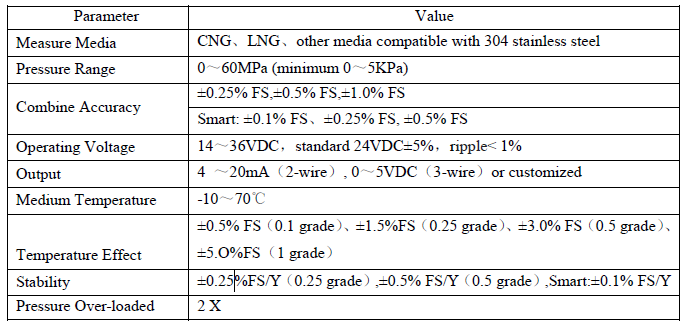

Specifications

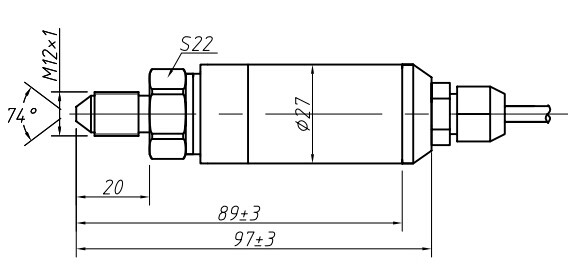

Product Diagram：

Gross Weight：300g（1m length cable）
Net Weight：240g（1m length cable）
