application:Intake manifold pressure and temperature sensorsmeasured the changes of intake manifold absolute pressure (vacuum) based on the load state of the engine, and converted it into a voltage signal, together with the speed signal delivered to the engine electronic control unit (ECU), as the basic of fuel injection volume.
Description
KYMAP uses German back pressure sensing element, can measure both pressure and temperature of the medium, with excellent media compatibility(can withstand corrosive H2S in natural gas), with wide working temperature, good stability and reliability to ensurereliable operation of the sensor in harsh automotive environments.
Applications
Engineintake manifold pressure and temperature detection
Turbopressure - temperature detection
Gas Pressure - Temperature detection
Auxiliary intake air quantity calculation
Auxiliary overheating, booster protection
Auxiliary highland compensation
Dual-fuel engine
Features：
◆Importedback pressure chip improve the anti-corrosion for weak acid(especially H2S);
◆Operating temperature -40℃and 125℃
◆Anti-shock, anti-vibration, Good interchangeability at site
◆Workingpressure and temperature output, leak-proof;
◆Customized Range Available
Application Description：
Intake manifold pressure and temperature sensorsmeasured the changes of intake manifold absolute pressure (vacuum) based on the load state of the engine, and converted it into a voltage signal, together with the speed signal delivered to the engine electronic control unit (ECU), as the basic of fuel injection volume.

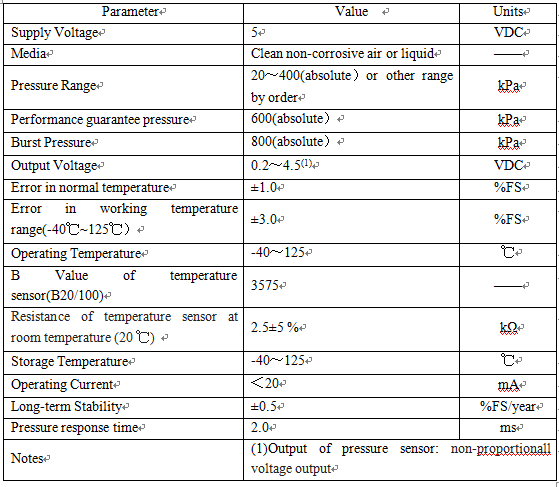

Specifications：
Gross Weight：30g
Net Weight：28g
