Product name:Mine safety type displacement sensor
The product model:GUC Series

application:GUC series of mine safety type displacement sensor apply to Hydraulic Roof Supports, Roadheaders and other mining equipment, the user can choose according to the actual installation structure.


  • Details
  • Specifications
  • Product Diagram

Description

GUC series of mine safety type displacement sensor is a magnetostrictive principle of non-contact absolute position measurement of displacement sensors, suitable for a mixture of methane gas and coal dust explosion hazards of coal mine. Contactless sensing with highest durability, Stable and reliable performance. Operating ambient temperature can work normally in the range of -10 ℃ to 60 ℃. Excellent performance of the sensor, allowing users ease of use.



Applications

Hydraulic Roof Supports

Roadheaders



Features

◆Intrinsically safe products meet GB3836-2010 MT1109-2011 and Q / XKYC 14-2012 standard, get ??coal safety certificate. Explosion-proof mark:ExibI;

◆Contactless Sensing with Highest Durability;

◆Installed in the hydraulic cylinder, the absolute value of the output;

◆Material and electrical performance conforms to mine safety requirements, high security;

Application Overview:

GUC series of mine safety type displacement sensor apply to Hydraulic Roof Supports, Roadheadersand other mining equipment, the user can choose according to the actual installation structure.

Specifications

GUC1200(A) Series

Security parameters:Ui:12.5V  Ii:15mA  Ci:0uF  Li:0mH

Operating voltage:+12V DC±10%

Current drain:≤15mA DC

Output: DC (0.5~4.5V)±0.02V;Load : 2KΩ~∞

Non-linearity: <±0.1%F.S.

Repeatability:<±0.01%F.S.

Resolution: 12bitD/A , 0.17mm

Measuring range: :0~1200mm



GUC1200(B) Series

Security parameters:Ui:12.5V  Ii:15mA  Ci:0uF  Li:0mH

Operating voltage:+12V DC±10%

Current drain:≤10mA DC

Output: DC (0.5~4.5V);Load : 2KΩ~∞

Non-linearity: <±0.2%F.S.

Repeatability:<±0.01%F.S.

Resolution: 10bitD/A , 1mm

Measuring range: 0~1200mm



GUC1200/2440(C) Series

Security parameters:Ui:12.5V  Ii:15mA  Ci:0uF  Li:0mH

Operating voltage:+12V DC±10%

Current drain:≤20mA DC

Output: DC (0~5V);Load : 2KΩ~∞

Non-linearity: <±0.2%F.S.

Repeatability:<±0.01%F.S.

Resolution: 16bitD/A , 0.34mm

Measuring range: 0~1200mm, 0~2440mm



Order Information:

GUC1200(A)、GUC1200(B)、GUC1200/2440(C)  (Please specify the scale procurement.)

Product Diagram:

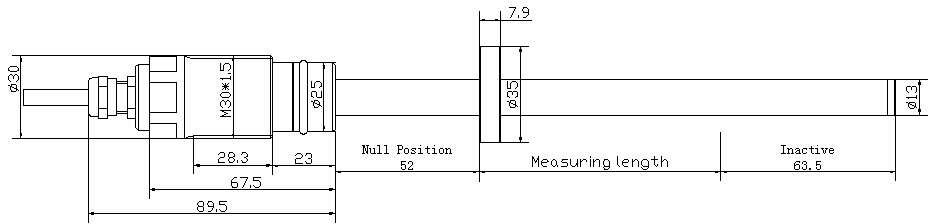

GUC1200(A)

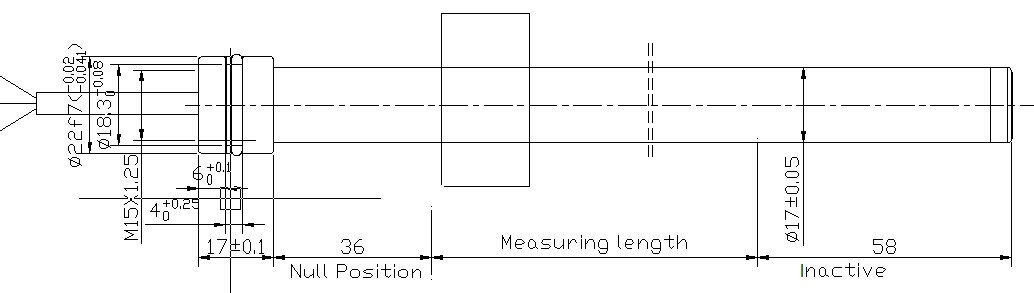

GUC1200(B)

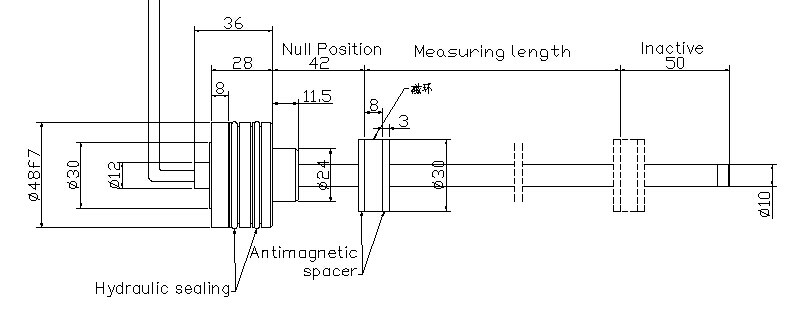

GUC1200/2440(C)
