Description

KYB2003P pressure transmitter can real-time monitoring and feedback the output pressure of the hydraulic system for injection molding machine. It is characterized by high accuracy and rapid time response, and it provide the accurate and reliable data for the control system to realize the conversion operation of injection molding machine, to achieve effective energy-saving, intelligent control and other functions. Compared with the traditional scheme of pressure switch, the power saving rate reach 25% ~ 70%.

Application

Injection molding machine

Rubber Machine

Pressure die-casting machine

Brick machine

Extruding machine

Features

◆High Reliability、good long term stability、good consistency

◆Anti-interference、vibration resistance

◆Excellentinstantaneous overload resistance

◆Rugged、easy to install

◆Can be customized according to the users requirements

Application Description
This pressure transmitter is installed in the oil system of injection molding machine, measuring the pressure of the hydraulic oil, input the signal to the closed loop control system, and send the results to the VVVF (variable Voltage and variable frequency) after calculation, as the basis of frequency converter to change the output power.

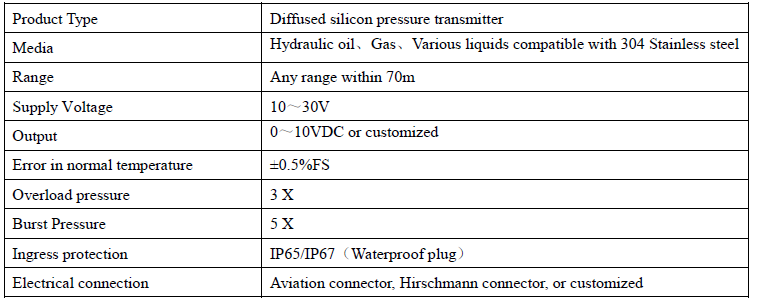

Specifications

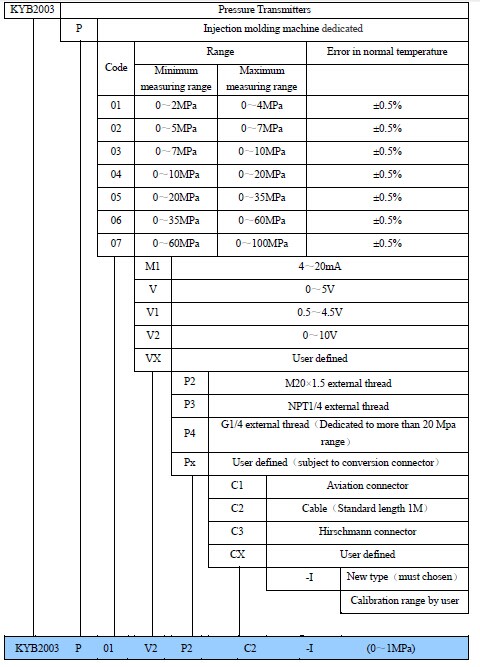

Ordering Information

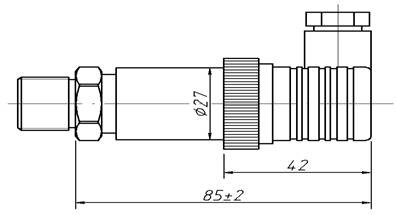

Dimension

Gross weight：293g
Net weight：243g
