Description

KYB2003L use the high-precision, high stability pressure sensor of famous brand, amplified by the back-end processing circuits and high reliability, the pressure measured medium into a standard electrical signal output.This series production adopt the special signal conditioning circuit and the new packaging technology, not only ensure the high precision, at the same time broaden the working temperature range so that it has the high performance.Especially suitable for a variety of CNG, LNG tank equipment for a complete set of application.

Applications

Vehicle CNG,LNG cylinders, tank, propellant pipeline pressure measurement

Features

◆High measurement accuracy

◆Wide temperature range of use

◆Good stability, high reliability

◆Overall compact, rugged

◆Can be customized according to the users requirements

Application Description
KYB2003L is installed in vehicle LNG cylinders intelligent liquid level measurement system, and it’s used for measuring the LNG tank pressure value.

Specifications

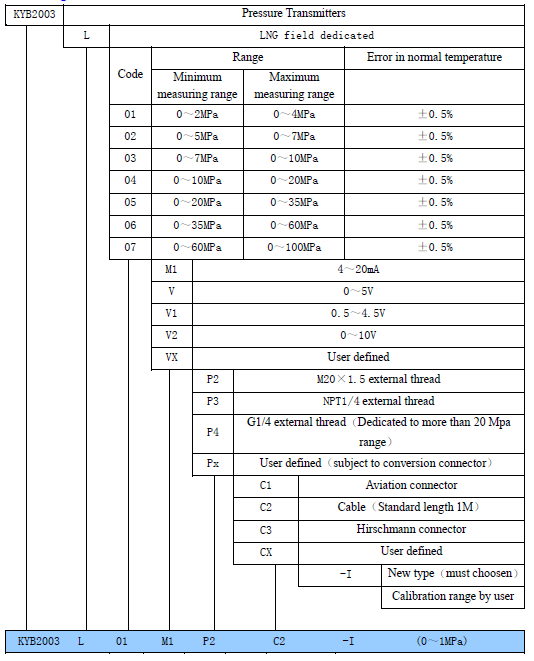

 Ordering Information

Dimension

Gross weight

Net weight：0.18kg
