Product name:Pressure Transmitter
The product model:KYB2003H Series

application:Torque detection of torque limiter is measuring the pressure of transformer oil of big and small cavity of automobile crane luffing cylinder through the pressure sensor, and converted into electrical signals,sent to central organization for calculation and display.


  • Details
  • Specifications
  • Product Diagram

Description

KYB2003H is a new kind of sensor which introduces the foreign latest technology of MEMS. It has many advantages such as high overload resistance, impact resistance, good stability. This sensor is specially developed for pavement construction machinery in harsh environments and it is particularly suitable for measuring the high pressure of large hydraulic cylinder.



Application

Cranes, Excavators, Loaders, Boring machine, Rotary drilling rig, Pavers



Features

◆Wide measuring range, high measuring accuracy

◆Good long-term stability, high reliability

◆Excellent instantaneous overload resistance

◆Anti-interference ability, good moisture resistance

◆Rugged、easy to install

  ◆Can be customized according to the users requirements

Application Description

Torque detection of torque limiter is measuring the pressure of transformer oil of big and small cavity of automobile crane luffing cylinder through the pressure sensor,and converted into electrical signals,sent to central organization for calculation and display.

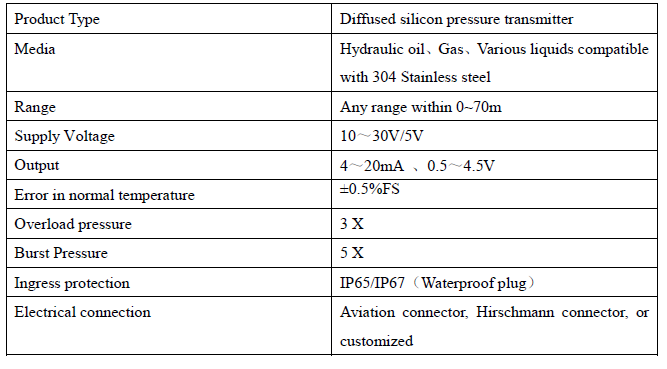

Specifications

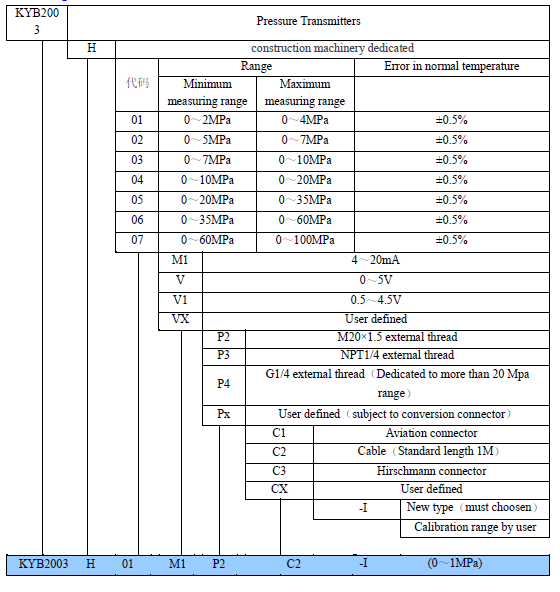

Ordering Information

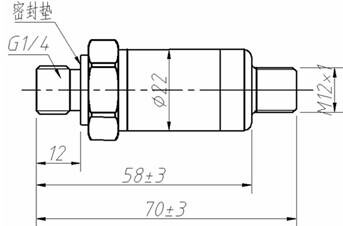

Dimension



Gross weight:132g

Net weight:82g
