Description

KYB2003A03 can display the oil pressure on the pressure gauge by measuring the engine oil pressure and output to ECU. ECU will alarm and take steps to protect the engine, when the oil pressure is too low.

Applications

Engine oil pressure and temperature measurement

Driver Pointer meter deflection

Driver warning lamp function

Features：

◆Multi-signal, multi-drive

◆High overload, range up to 5 times FS, anti-shock

◆Precision / digital compensation

◆No internal O- rings

◆Response the temperature of oil fast

Application Description：

KYB2003A03 oil pressure and temperature sensors are widely used in gasoline and diesel engine oil pressure and temperature testing, which have been successful matching for Guangxi Yuchai diesel engines and other OEMs.

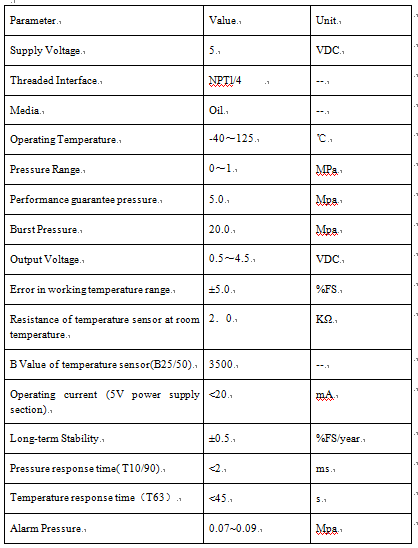

Specifications

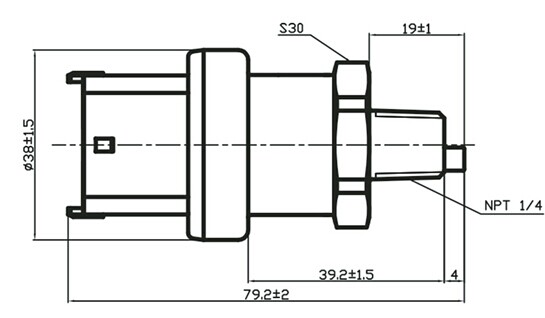

Product Diagram
