Description

KYB600 series use high accuracy, high stability sensor with mature and exquisite packaging technology and assembly, with high reliability back-end amplification circuit, converting the measured medium pressure into standard electrical signal output.

Applications：

Field of natural gas compressor

Field of gas dispenser

Gas sub- station

Field of gas drilling platform

Features：

◆Available with display meter, live readings

◆Mature matching, nice consistency

◆Selection of high quality sensors, high precision and reliability

◆Provide intrinsically safety type ExiaIICT5, flame-proof type ExdIIBT5

◆Can be customized according to clients’ requirements

Application Description

KYB600 is a mature solution widely used in gas compressor, gas dispenser with high performance-to-price ratio and long service life. It is dedicated product gained the customer the consistent approval.

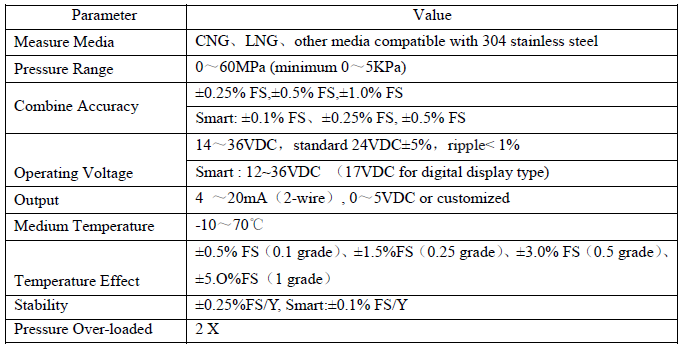

Specifications

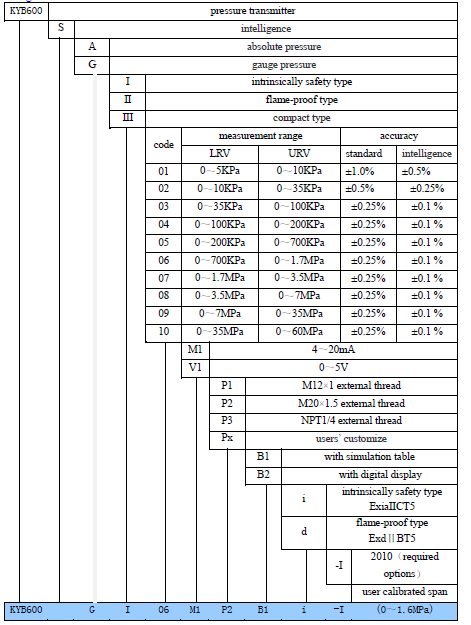

Ordering Information：

* Smart products do not provide voltage output, only provide type II shell, if need display, only digital display available.
* * Dedicate products only 05 ~ 09 range available, and ±0.5% accuracy for 7 mPa and below range, above 7 mPa range, the accuracy is ±1.0% without digital display.

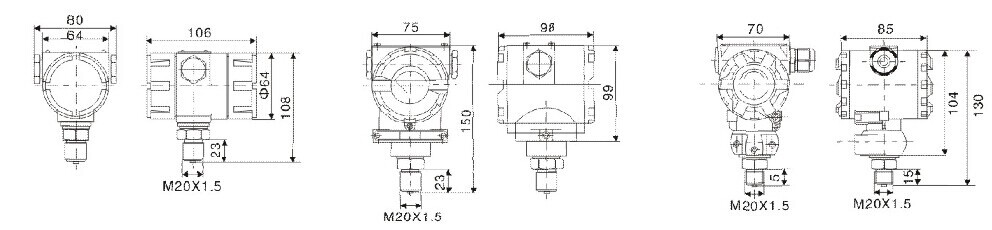

Product Diagram：

 KYB600I（intrinsically safety type）        KYB600II（flame-proof type）             KYB600II(compact type)

Gross weight: 1220g/set

Net weight: 1160g/set
