Product name:Magnetosrictive
The product model:KYDM-F/Vehicle Fuel Consumption Monitoring System/KYCS-J

application:KYDM Magnetostrictive liquid level transducer (Oil Chemical dedicated) provides high accurate measurement of liquids level sensor designed for huge tank or vessels. It can be tailored to special length and mounting requirements for petrochemical applications. It transmits and monitors level, interface, and temperature at the same time. In addition, volume, density and weight can be work out.


  • Details
  • Specifications
  • Product Diagram

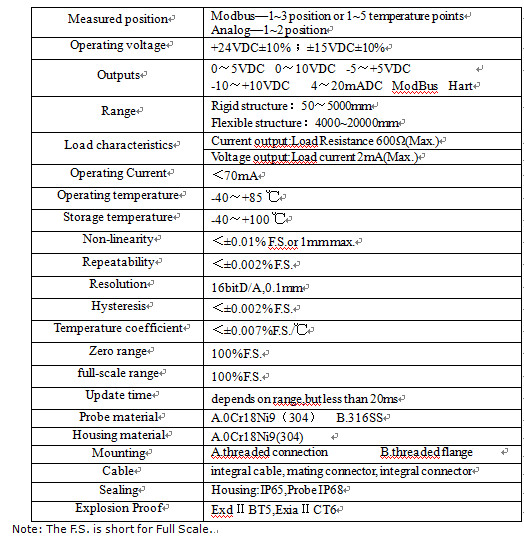

Specifications:





For example: KYDM-FG1M910W-GB01000M1J13-W100

Notes: 1. Pls. specify product model number for correct order.

2. Just for level transducer.

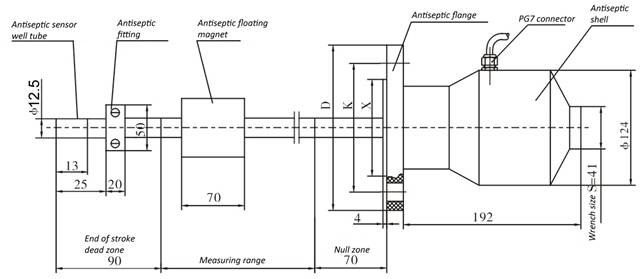

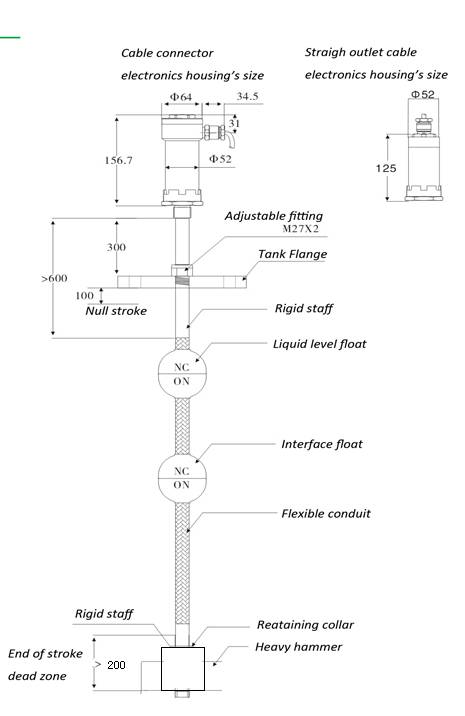

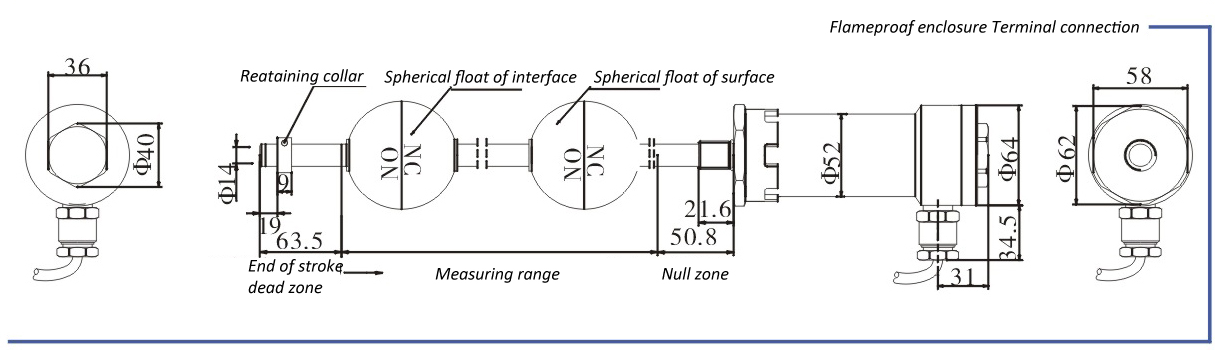

Product Dimension:
