Description

KYB19 series use famous brands of high accuracy and

high stability pressure sensor, amplified by high reliability

circuit to convert the measured liquid level signal into

a standard electrical output. High-quality sensors, superb

packaging technology and advanced assembly process

ensure product directly into the liquid level for measurement.

Applications

City District Water Supply System

Ships and port facilities supporting

Water Conservancy hydrological measurement and monitoring

Recycled water and sewage treatment systems

Open tank level measurement and control of industrial site

Features

◆Wide range, high accuracy

◆Superior waterproof, moisture-proof, anti-condensation properties

◆Intrinsically safe, wide application

◆Intelligent series, with Hart protocol

◆High accuracy, easy debugging

◆Customized matching available

【Application Description】：
The series is divided into integrated and split two structures, which split has cable type and armored type. Armored type is suitable for various strong permeability organic solvents and alkaline solvents to maximum satisfy customers’ demand. In addition, the series also has intrinsic safety explosion-proof performance, to meet the general requirements for explosive environments.

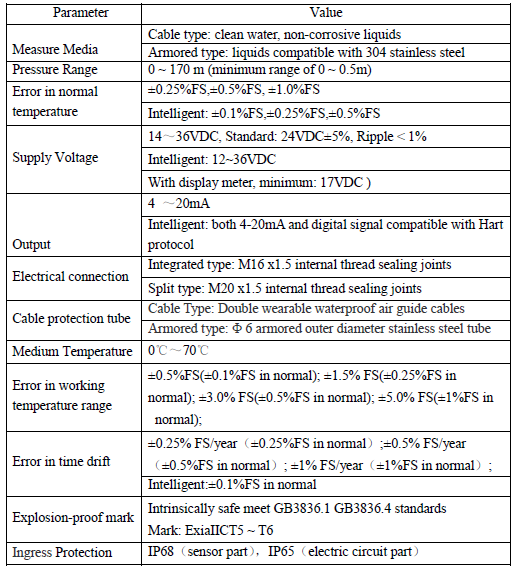

Specifications

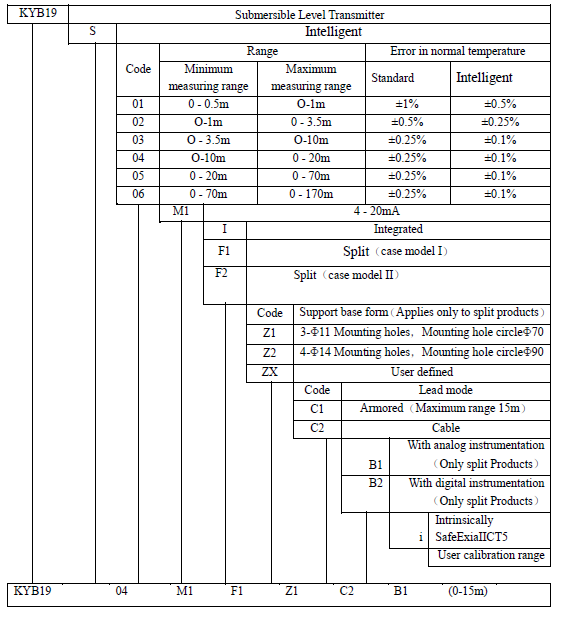

Ordering Information：

*Special Note: outdoor installation, please pay attention to the prevention of lightning.

*Split intelligent products only type II case, if necessary with a header, only the DRO.

*If the product is used in the sludge environment, the company can provide the probe attempts to prevent the bracket supporting the use.

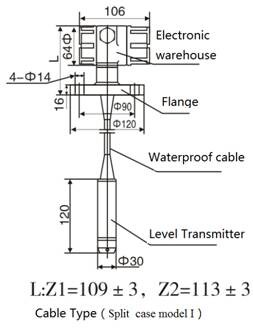

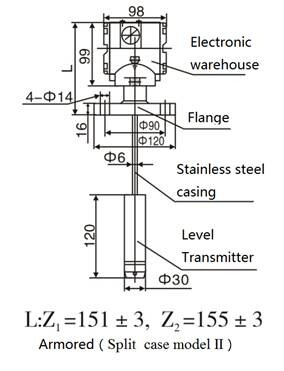

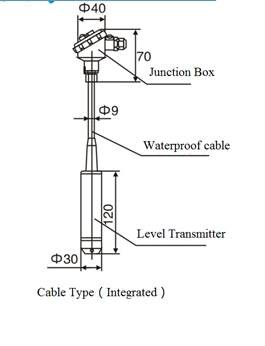

Dimension:
