Description

This product is suitable for a coal mine methane gas mixture and the risk of coal dust explosion. No oil, isolated sensor structure greatly improves the product overload and impact resistance, so that the stability of the product is better, and longer life. Superb all-welded packaging technology and improve the assembly process to ensure high quality and excellent performance of the transmitter, is a specialized pressure transmitter design supporting in coal mining equipment.

Applications

Pressure detection for hydraulic support of coal mine, scraper conveyor equipment, etc.

Emulsion pump pressure mine, level monitoring；

Pressure measurement integrated detection system of coal mine；

Features：

◆3 times Performance guarantee pressure,5 times Burst Pressure

◆Meet the 500VDC insulation and 500VACvoltage requirements

◆All stainless steel structure, firm and reliable, strong impact resistance, anti falls the seismic

◆IP67 Protection grade

◆The product has the security certification

Application Description：

As shown, the pressure transmitter is mainly pillar installed in hydraulic support, monitor the working face hydraulic support upright post subarachnoid pressure;

Specifications：

GPD60(A)Intrinsically safe parameters： U_i：12.5V；I_i：15mA；C_i：0uF；L_i：0mH

GPD60(B)Intrinsically safe parameters：U_i：12.5V；I_i：10mA；C_i：0uF；L_i：0mH

Pressure Range：0~60MPa

Supply Voltage：12VDC（12_~28VDC）

Output Voltage：GPD60(A)为4_~20mA；GPD60(B)为0_~5VDC（Optional）

Operating Current：≤10mADC（GPD60(B))

Error in normal temperature：±1%FS

Ordering Information: Current type：GPD60(A)；Voltage type：GPD60(B)

Product Diagram：

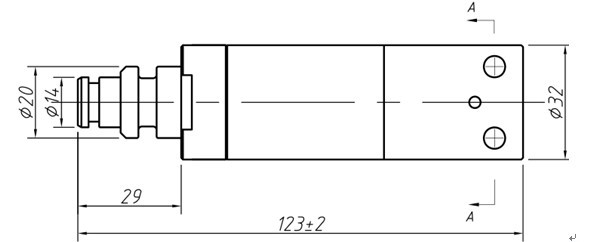

GPD60(A)：

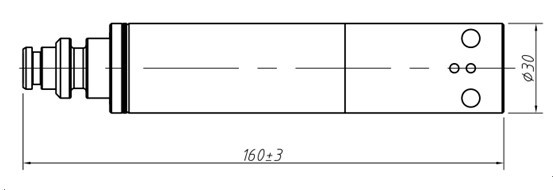

GPD60(B)：

Gross Weight：480g
Net Weight：430g
