Description：

KYB3000 use the foreignfamous brands’silicon-on-sapphire pressuresensor with high-precision and high stability, by using the back-end amplifier circuit with high reliability, to convert the pressuresignal of measured medium into a standard electrical signal output. The overall structure of the series without isolating diaphragm and intermediary liquid,the measured medium contact with titanium alloy diaphragm directly,with the characteristics of corrosion resistance, abrasion resistance, minimal zero drift.

Applications：

Petroleum and chemical industry

Steel and metallurgical industry

Power plants, nuclear power plants

Aerospace field

Features：

◆Wide range,high accuracy

◆Ultra wide applicable temperature range,

 temperature characteristics of superior

◆High stability,high reliability

◆Exquisite shape,strong structure

◆Can be customized according to clients’ requirements

Application Description：

This series widely used in oil field, mine, aerospace, steel, metallurgy, nuclear power plants and other applications which is wide temperature range, high-pressure, high-precision and corrosive applications.

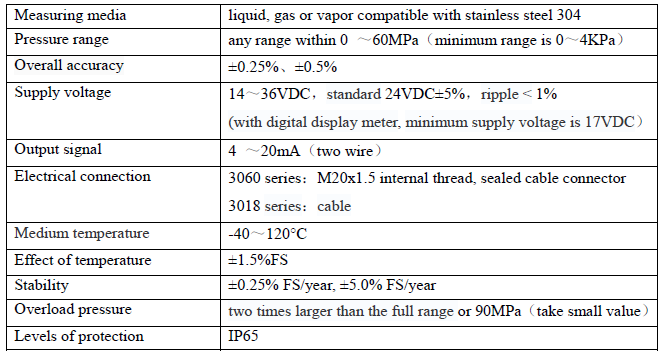

Specifications：

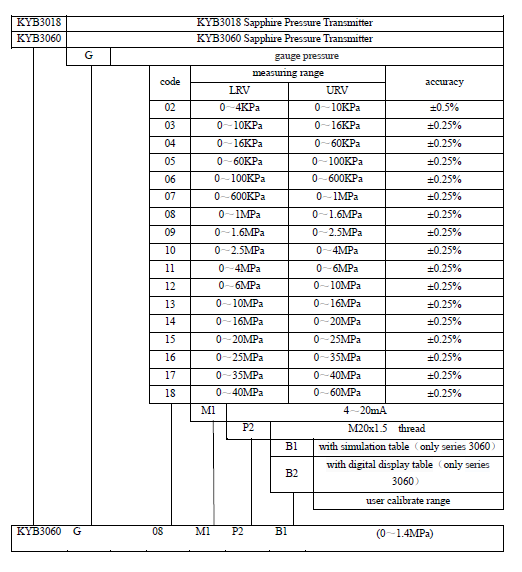

Ordering Information：

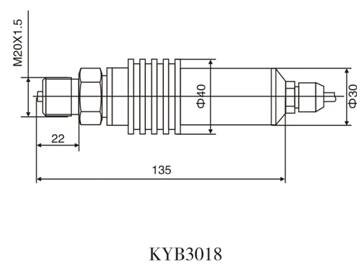

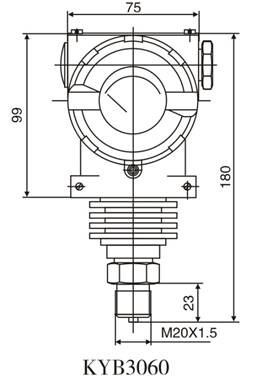

Product Diagram：
